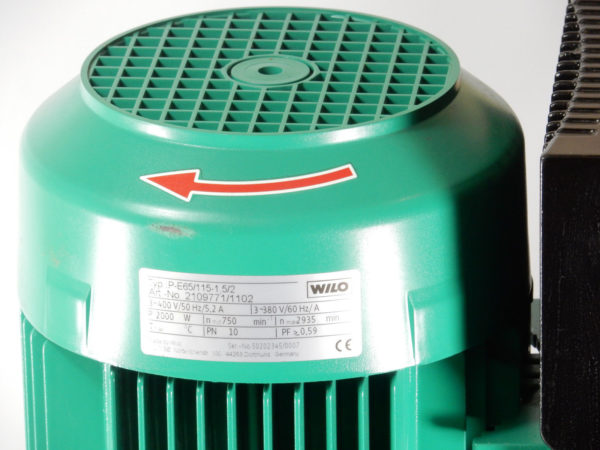

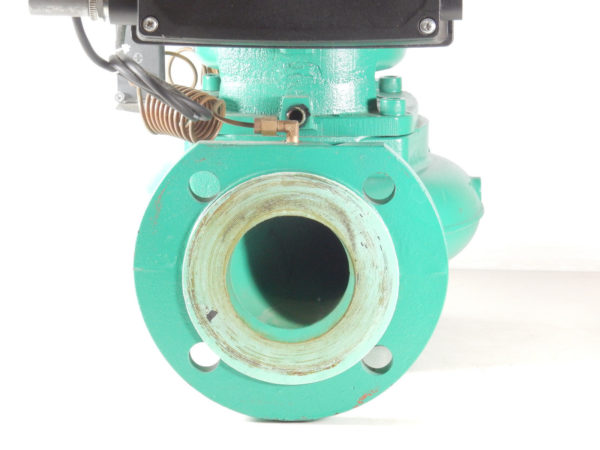

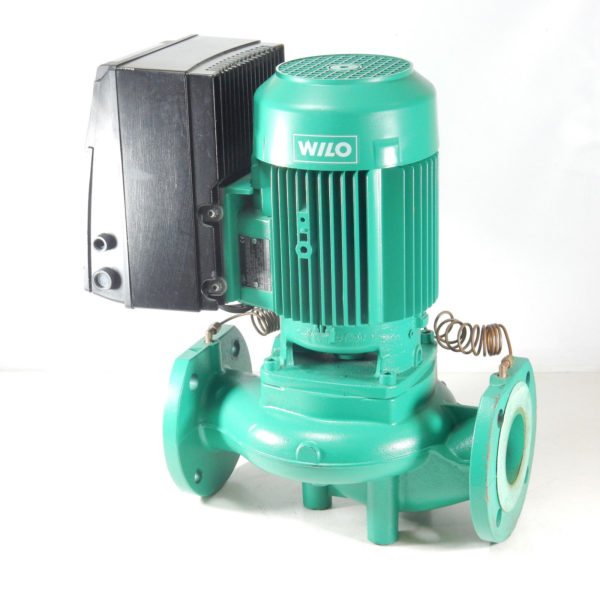

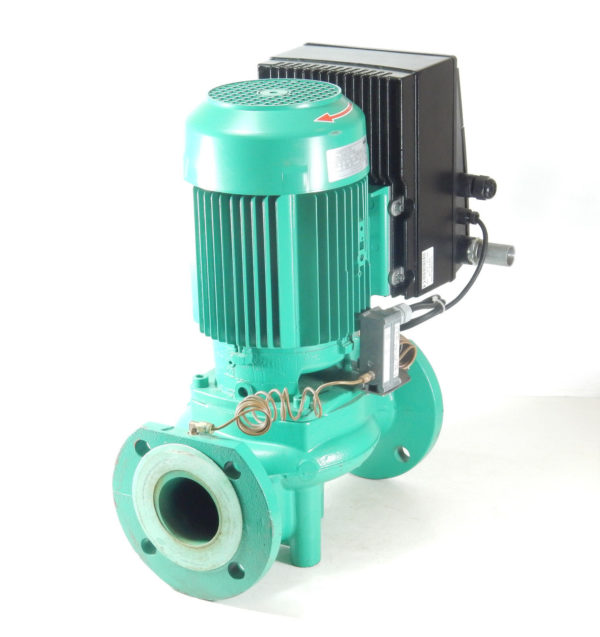

WILO VEROLINE IP-E 65/115-1.5/2 – 3 PHASE CIRCULATION PUMP

The VeroLine IP-E 65/115-1.5/2 from Wilo is an electronically controlled glanded single pump in in-line design with flange connection and automatic power adjustment.

Applications include pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Technical data

•     Minimum Efficiency Index (MEI) ≥ 0.4
•     Permissible temperature range -20 °C to +120 °C
•     Mains connection
•         3~400 V ±10 %, 50 Hz
•         3~380 V -5 % +10 %, 60 Hz
•     Protection class IP 55
•     Nominal diameter DN 65
•     Max. operating pressure 10 bar
•     Simple operation with red-button technology and display
•     Integrated dual pump management
•     Integrated full motor protection (PTC thermistor sensor) with trip electronics
